APS-RPS Series "The Garnet"

Description

“The Garnet” is a AC-DC DIN Rail Mount Power Supply unit. It features a universal input voltage of 90-264Vac, an output current of 1250mA-20000mA, and is available in power ratings of 60W, 120W, 240W, and 480W. It’s low profile and convection cooling helps to manage space on your DIN rail while eliminating the need for fans or forced air cooling. “The Garnet” comes equipped with SCP, OVP, and Overload Protection, making it an ideal candidate for process control, traffic and transportation systems, factory automation, and much more.

APS-RPS Series "The Garnet"
End of life alternative

Specifications

Type:

AC-DC DIN Rail Mount

Universal Input Voltage:

90-264Vac

Output Current:

1250mA-20000mA

Power Ratings:

60W | 120W | 240W | 480W

Features/Options:

Convection Cooling

Single Phase Input

High Efficiency

OVP, SCP, OTP, & OLP

UL 508 approved(E522848)

Applications:

Process Control

Traffic & Transportation Systems

Factory Automation

Description

“The Garnet” is a AC-DC DIN Rail Mount Power Supply unit. It features a universal input voltage of 90-264Vac, an output current of 1250mA-20000mA, and is available in power ratings of 60W, 120W, 240W, and 480W. It’s low profile and convection cooling helps to manage space on your DIN rail while eliminating the need for fans or forced air cooling. “The Garnet” comes equipped with SCP, OVP, and Overload Protection, making it an ideal candidate for process control, traffic and transportation systems, factory automation, and much more.

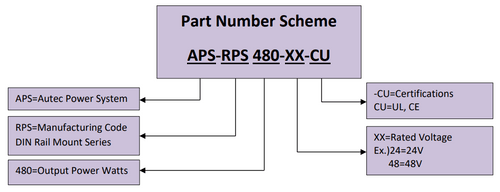

Model Numbers

APS-RPS60-05-CU, APS-RPS60-12-CU, APS-RPS60-15-CU, APS-RPS60-24-CU, APS-RPS60-48-CU, APS-RPS120-12-CU, APS-RPS120-15-CU, APS-RPS120-24-CU, APS-RPS120-48-CU, APS-RPS240-12-CU, APS-RPS240-24-CU, APS-RPS240-48-CU, APS-RPS480-24-CU, APS-RPS480-48-CU

Legacy Model Numbers
