L3WCD-E Series "The Elegant"

LED Driver

Description

The "Elegant" a metal constructed constant current LED driver. This Device has a input of 100-277vac and an output range of 500-7500ma. Featuring a dimming capacity with dim to off, Resistor, PMW and 0.5-10 volts. This Led driver features the ability to control the output through a pot switch. IP67 and UL listed with a power rating of 75, 96, 100, 150 and 240 watts this device will meet your power needs. Even better this driver is suitable for indoor, outdoor, dry, damp, wet and hazardous locations.

L3WCD-E Series "The Elegant"
End of life alternative

Specifications

Case Type:

Metal

Input Voltage:

100-277Vac

Design:

Constant Current (CC)

Output Range:

500-7500mA

Power Ratings:

75W | 96W | 100W | 150W | 240W

Class:

UL Listed

Features/Options:

Hazardous Locations

IP67

Output Adjustable Through POT Switch

Dimming:

0(0.5)-10V, PWM, Resistor, Dim-to-Off

Applications:

Indoor & Outdoor

Dry, Damp, & Wet Locations

Description

The "Elegant" a metal constructed constant current LED driver. This Device has a input of 100-277vac and an output range of 500-7500ma. Featuring a dimming capacity with dim to off, Resistor, PMW and 0.5-10 volts. This Led driver features the ability to control the output through a pot switch. IP67 and UL listed with a power rating of 75, 96, 100, 150 and 240 watts this device will meet your power needs. Even better this driver is suitable for indoor, outdoor, dry, damp, wet and hazardous locations.

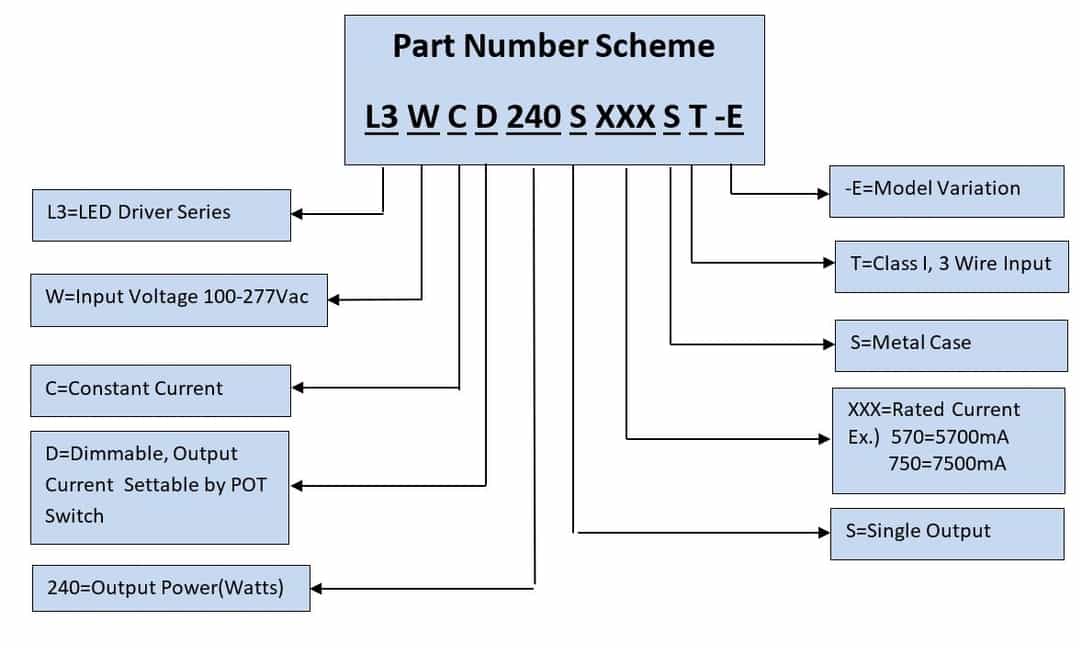

Model Numbers

L3WCD075S230ST-E, L3WCD075S180ST-E, L3WCD075S105ST-E, L3WCD096S310ST-E, L3WCD096S240ST-E, L3WCD100S267ST-HL, L3WCD100S230ST-HL, L3WCD100S200ST-HL, L3WCD100S178ST-HL, L3WCD150S470ST-E, L3WCD150S360ST-E, L3WCD240S750ST-E, L3WCD240S570ST-E

Legacy Model Numbers
