L3WCD-R Series "The Mystery"

LED Driver

Description

“The Mystery” (L3WCD-R Series) is a Constant Current LED Driver available in Power Ratings of 60W, 120W, 160W, 200W, and 240W. Featuring an Input Voltage of 100-277Vac and an Output Range of 770mA-7500mA, the Mystery is UL Listed and features a metal saucer casing, IP65 rating, adjustable output through POT switch, and 3-in-1 Dimming (0-10V/PWM/Resistor). This LED Driver is suitable for indoor and outdoor applications in dry, damp, and wet locations.

L3WCD-R Series "The Mystery"
End of life alternative

Specifications

Case Type:

Metal, Saucer

Input Voltage:

100-277Vac

Design:

Constant Current (CC)

Output Range:

770mA-7500mA

Power Ratings:

60W | 120W | 160W | 200W | 240W

Class:

UL Listed

Features/Options:

Saucer Type

IP65

Adjustable Output Through POT Switch

Dimming:

3 in 1 Dimming: 0-10V/PWM/Resistor

Applications:

Indoor & Outdoor

Dry, Damp, & Wet Locations

Description

“The Mystery” (L3WCD-R Series) is a Constant Current LED Driver available in Power Ratings of 60W, 120W, 160W, 200W, and 240W. Featuring an Input Voltage of 100-277Vac and an Output Range of 770mA-7500mA, the Mystery is UL Listed and features a metal saucer casing, IP65 rating, adjustable output through POT switch, and 3-in-1 Dimming (0-10V/PWM/Resistor). This LED Driver is suitable for indoor and outdoor applications in dry, damp, and wet locations.

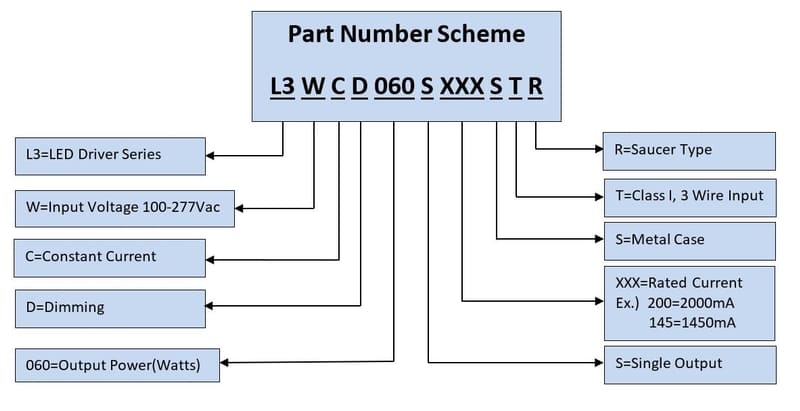

Model Numbers

L3WCD060S190STR, L3WCD060S145STR, L3WCD120S375STR, L3WCD120S285STR, L3WCD120S215STR, L3WCD160S500STR, L3WCD160S380STR, L3WCD160S285STR, L3WCD200S625STR, L3WCD200S480STR, L3WCD200S360STR, L3WCD240S750STR, L3WCD240S570STR, L3WCD240S420STR

Legacy Model Numbers
