LDDCD Series “The Case”

LED Driver

Description

The constant current plastic encapsulated cased LED driver known by "The Case" is an easy way to have multiple outputs between 8-52 watts. With an output range of 300-1000ma its perfect for indoor and outdoor uses while also being CE certified. A 12 or 24 volt DC to DC driver that comes with PWM dimming control and internal SMD technology.

LDDCD Series “The Case”
End of life alternative

Specifications

Case Type:

Plastic

Input Voltage:

6Vdc~36Vdc, 9Vdc~36Vdc, 9Vdc-52Vdc, 9Vdc-56Vdc

Design:

Constant Current (CC)

Output Range:

300mA-1000mA

Power Ratings:

8W | 10W | 11W | 12W | 14W | 16W | 17W | 18W | 20W | 23W | 24W | 26W | 30W | 34W | 36W | 45W | 47W | 48W | 52W

Class:

CE Certified

Features/Options:

Internal SMD Technology

Encapsulated Module

Dimming:

PWM Dimming Control

Applications:

Indoor & Outdoor

12V & 24V Systems

Description

The constant current plastic encapsulated cased LED driver known by "The Case" is an easy way to have multiple outputs between 8-52 watts. With an output range of 300-1000ma its perfect for indoor and outdoor uses while also being CE certified. A 12 or 24 volt DC to DC driver that comes with PWM dimming control and internal SMD technology.

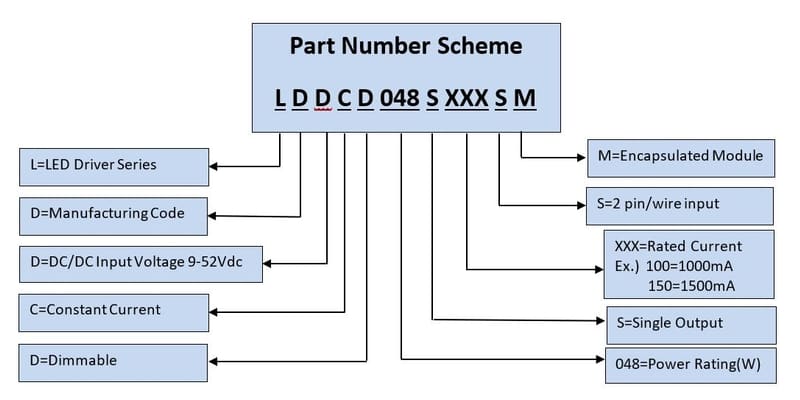

Model Numbers

LDDCD012-12401-030SMX, LDDCD014-12401-035SMX, LDDCD016-12321-050PSX, LDDCD018-12301-060SMX, LDDCD010-12321-030SMX, LDDCD011-12321-035SMX, LDDCD016-12321-050SMX, LDDCD020-12321-060SMX, LDDCD023-12321-070SMX, LDDCD008-12281-030SMX, LDDCD014-12281-035SMX, LDDCD014-12281-050SMX, LDDCD017-12281-060SMX, LDDCD020-12281-070SMX, LDDCD030-12301-100SMX, LDDCD036-12301-120SMX, LDDCD045-12301-150SMX, LDDCD048-12461-100SMX, LDDCD048-12461-120SMX, LDDCD048-12461-150SMX, LDDCD016-12521-030SMX, LDDCD018-12521-035SMX, LDDCD026-12521-050SMX, LDDCD031-12521-060SMX, LDDCD036-12521-070SMX, LDDCD047-12521-090SMX, LDDCD052-12521-100SMX

Legacy Model Numbers
