LNACP Series "The Auxiliary"

LED Driver

Description

“The Auxiliary” is Autec’s LNACP Series Constant Current Programmable LED Driver. Featuring an input voltage of 347Vac and an output range of 350–2750mA, the Auxiliary is a UL recognized, UL Class 2 unit that comes available in a standard aluminum or linear casing. It is available in power ratings of 30W, 40W, 50W, 60W, 80W, and 98W. Options available for the Auxiliary are dimming of 0–10V/PWM/Resistance, programmable operation, a surge rating of 2KV, and IP64 and IP 30 ratings, making it suitable for outdoor applications. The Auxiliary is made in Taiwan.

LNACP Series "The Auxiliary"
End of life alternative

Specifications

Case Type:

Aluminum, Linear

Input Voltage:

347Vac

Design:

Constant Current (CC)

Output Range:

350mA-2750mA

Power Ratings:

30W | 40W | 50W | 60W | 80W | 98W

Class:

UL Recognized, UL Class 2

Features/Options:

Made-in-Taiwan

Dimming:

0-10V, PWM, Resistance

Programmable

Surge Rating 2KV

IP64, IP30

Applications:

Indoor & Outdoor

Description

“The Auxiliary” is Autec’s LNACP Series Constant Current Programmable LED Driver. Featuring an input voltage of 347Vac and an output range of 350–2750mA, the Auxiliary is a UL recognized, UL Class 2 unit that comes available in a standard aluminum or linear casing. It is available in power ratings of 30W, 40W, 50W, 60W, 80W, and 98W. Options available for the Auxiliary are dimming of 0–10V/PWM/Resistance, programmable operation, a surge rating of 2KV, and IP64 and IP 30 ratings, making it suitable for outdoor applications. The Auxiliary is made in Taiwan.

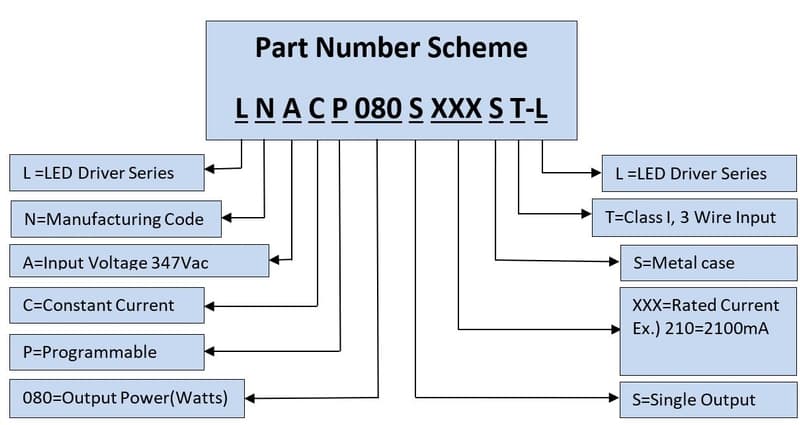

Model Numbers

LNACP030S125SS, LNACP030S125SS-L, LNACP040S140SS, LNACP050S140SS-L, LNACP060S140SS-L, LNACP080S210ST-L, LNACP098S275ST-L

Legacy Model Numbers
