LNWCD Series “The Narrows”

LED Driver

Description

The Narrows is a Constant Current high-efficiency LED Driver that is part of Autec's tariff relief line of power solutions. This series features 120Vac-277Vac of input voltage and an output range of 2100–5400mA. Additionally, models are available in power ratings of 90W, 100W, 132W, 144W, 148W and 160W. The Narrows has been extensively tested to ensure quality and longevity while being UL recognized, UL Class 2 rated. Features for this series include: 3 in 1, 0–10V, PWM, Resistance dimming as well as multiple outputs and a surge rating of 2KV. The Narrows is suitable for indoor or outdoor applications with an IP65 rating.

End of life alternative

Specifications

Case Type:

Metal

Input Voltage:

120-277Vac

Design:

Constant Current (CC)

Output Range:

2100mA-5400mA

Output Current Per Channel:

0.7A, 1.05A, 1.35A

Power Ratings:

90W | 100W | 132W | 144W | 148W | 160W

Class:

UL Recognized, UL Class 2

Features/Options:

Made-in-Taiwan

Multiple Outputs

Triple Output models

Quad Output models

Surge Rating 2KV

IP65

Dimming:

3 in 1 Dimming

0-10V, PVM, Resistance

Applications:

Indoor or Outdoor

Description

The Narrows is a Constant Current high-efficiency LED Driver that is part of Autec's tariff relief line of power solutions. This series features 120Vac-277Vac of input voltage and an output range of 2100–5400mA. Additionally, models are available in power ratings of 90W, 100W, 132W, 144W, 148W and 160W. The Narrows has been extensively tested to ensure quality and longevity while being UL recognized, UL Class 2 rated. Features for this series include: 3 in 1, 0–10V, PWM, Resistance dimming as well as multiple outputs and a surge rating of 2KV. The Narrows is suitable for indoor or outdoor applications with an IP65 rating.

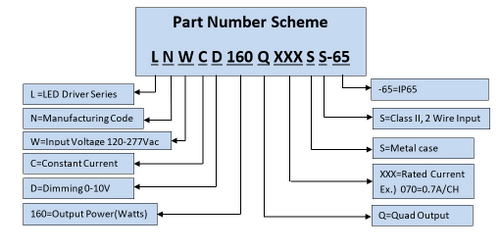

Model Numbers

LNWCD090T070SS-65, LNWCD100Q070SS-65, LNWCD132Q135SS-65, LNWCD144T105SS-65, LNWCD148Q105SS-65, LNWCD160Q105SS-65

Legacy Model Numbers
